AVAT Automation GmbH at the EPLAN Data Portal

AVAT is one of the highly specialized and independent energy engineering partners for large gas engine manufacturers, plant engineering, utilities and operators of decentralized energy systems.

AVAT - THE ENERGY ENGINEERING COMPANY

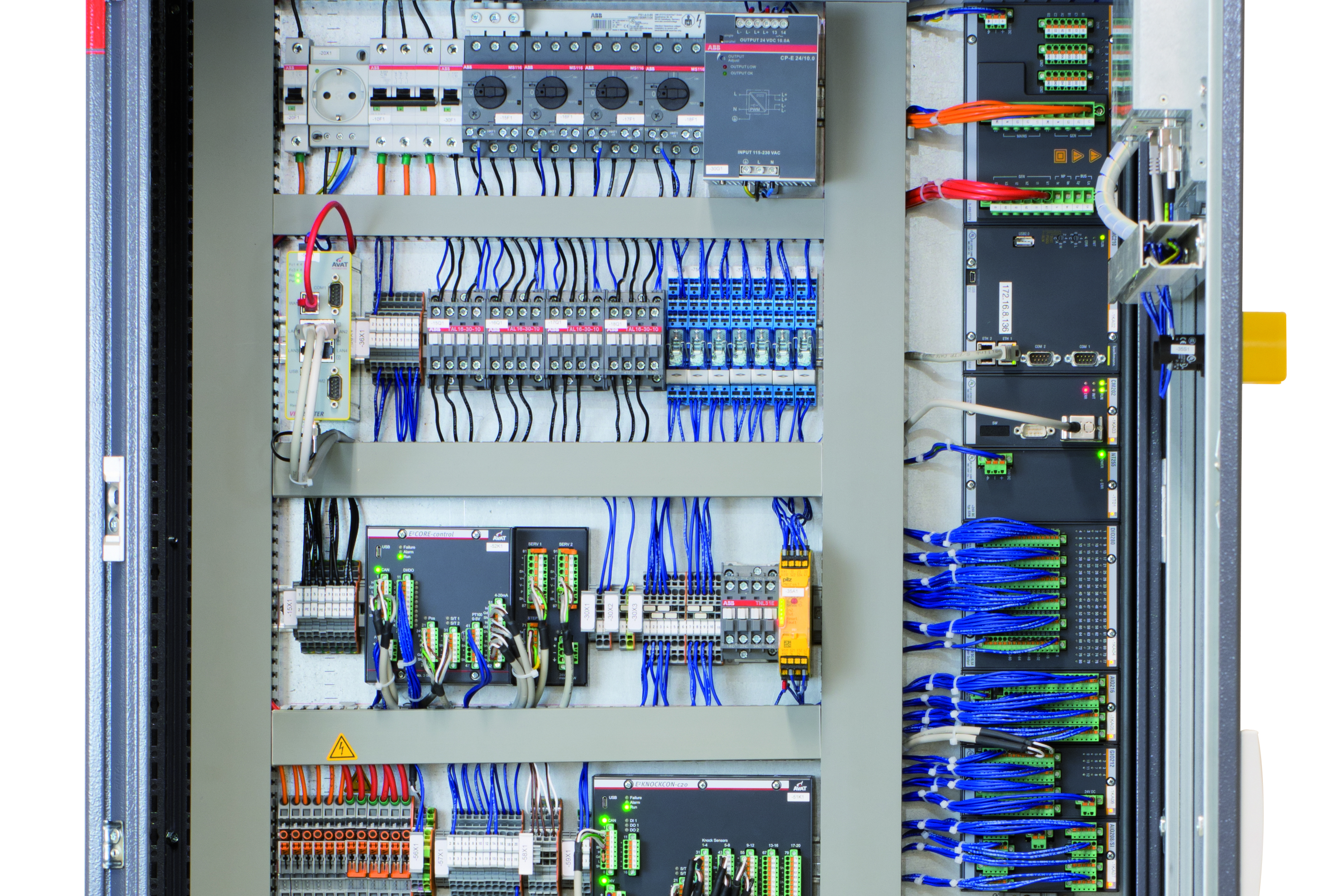

AVAT is one of the highly specialized and independent energy engineering partners for large gas engine manufacturers, plant engineering, utilities and operators of decentralized energy systems. With our 30 years of experience and the competence of more than 8,500 engine control systems, including the development and supply of the worldwide installed TEM control system, our portfolio serves the complete solution scope of energy automation. It ranges from control systems and components for large engines to the planning and implementation of decentralized energy supply. Gas and DF-powered large engines: combustion control, anti-knock control, software solutions, remote maintenance, prototype development and commissioning. Decentralized energy supply: Integrated automation and control solutions from one source: the control system to the field device, software to cabinet, planning to commissioning.

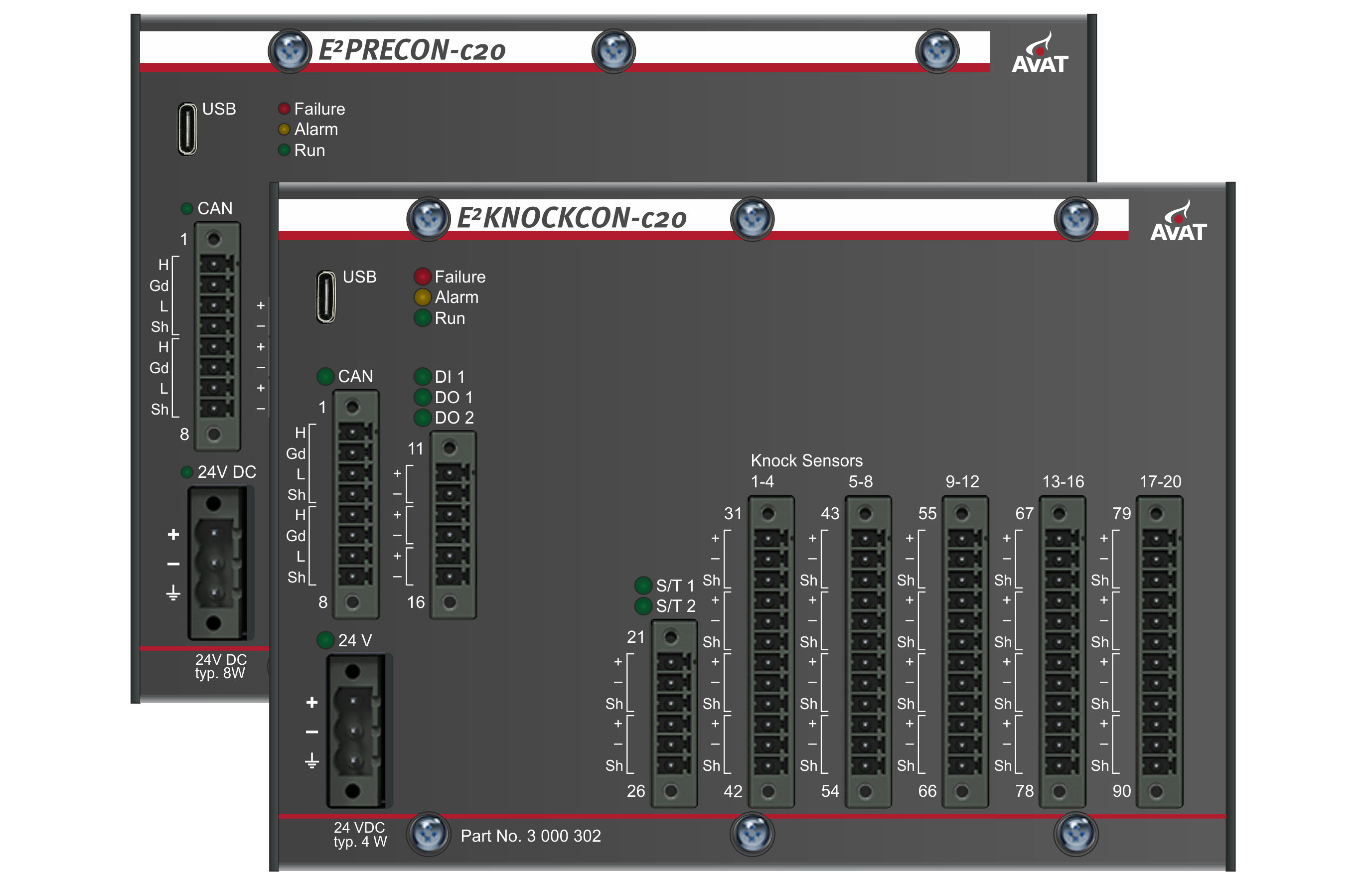

E²KNOCKCON-c

E²KNOCKCON-c is an extremely compact anti-knock controller for up to 20 cylinders with a variety of additional features.

High sensitivity and selectivity
Reliable misfire detection
Cylinder-individual knock control
Direct communication to ignition system (option)
Library for Bachmann PLC included
Available for 4, 12 or 20 knock sensors

E²PRECON-c

E²PRECON-c processes data from up to 20 cylinder pressure sensors and provides real-time combustion characteristics for monitoring and closed-loop control.

Cylinder pressure based combustion control
Enables balancing, misfire and knock detection
Cylinder-individual combustion characteristics
Service tool assists in engine diagnostics and optimization
Library for Bachmann PLC included
Available for 4, 12 or 20 cylinder pressure sensors

E²CORE-control

E²CORE-control is a state-of-the-art multivariable speed/power/lambda controller for mixture-charged gas engines.

Exceptionally compact design
Direct connection of actuators and sensors
Independent single control or multivariable control configurable
Overspeed monitoring
Input lambda sensor (E²CORE-control+)
Library for Bachmann PLC included

For more information please visit our website <link http: www.avat.de en _blank>www.avat.de/en/.
Address AVAT Automation GmbH
Derendinger Straße 40
DE-72072 Tübingen
Phone: +49 7071 9735-0
Fax: +49 7071 9735-55
E-Mail: <link>avat@avat.de
<link http: www.avat.de en _blank>www.avat.de
