Automatizált elektromos tervek:
Jelentős időmegtakarítás a gépgyártás során
Dolgozzon projektsablonokkal, használja újra a könyvtárakból elérhető szabványos áramköröket, származtassa a dokumentációt automatikusan, vagy készítsen tervrajzokat egyetlen gombnyomással: a gépgyártáshoz szükséges elektromos tervek órák, sőt percek alatt elkészíthetők. Ez akkor lehetséges, ha szisztematikusan szabványosítja és automatizálja a tipikus projektlépéseket. De vajon megvalósítható-e ez az Ön vállalatán belül is? Természetesen megvalósítható! Az EPLAN szívesen segít Önnek az automatizált tervezés minden területén.
Merre tart Ön a gépgyártásban?
Induljunk el együtt az úton!
Automatizált elektromos tervek a gépgyártás során: Megéri?
Akár fellendülés, akár válság idején: a szakmunkáshiány továbbra is kellemetlen téma a gépgyártásban. A vállalatoknak gyakran éppen csak annyi alkalmazottjuk van, amennyi a napi üzletmenethez szükséges. Akkor miért éppen most fordítana időt és energiát az elektromos tervek automatizálására?
Őszintén szólva nem minden gépgyártó vállalatnak kell teljesen automatizálnia az elektrotechnikát - az előnyöknek mindig felül kell múlniuk a költségeket. Ha csak néhány projektsablont már bevezetett az elektromos tervek szabványosítása érdekében, akkor már jó úton halad az automatizált tervezés felé!
Mi az, amit feltétlenül el szeretnénk mondani?
Egészen pontosan: az előre meghatározott vagy egyedileg testre szabott könyvtárak lehetővé teszik az EPLAN felhasználók számára, hogy a mindennapi munkájuk során gyakorlatilag egy egérkattintással tervrajzokat készítsenek.
The benefits of automated engineering for machine building
- Working with a centrally maintained library of circuit templates increases the design speed and quality of current projects.
- The work time spent on electrical engineering is considerably reduced – often by more than half.
- All required documentation can be derived automatically and complies with current standards and customer specifications.
- New hires as well as less-experienced employees can be trained quickly.
Tips for your getting started in automated electrical design
- You identify circuits that are repeatedly used in your daily business and gradually create a library to manage these templates.
- Keep at it! Continue expanding your library. Motivate your co-workers to also use and expand the library.
- Define universal project templates and design rules based on current standards for all of your electrical engineering designs.
- Automatically create schematics for your first sub-projects: combine circuit templates with project data, then generate and add them to your EPLAN project.

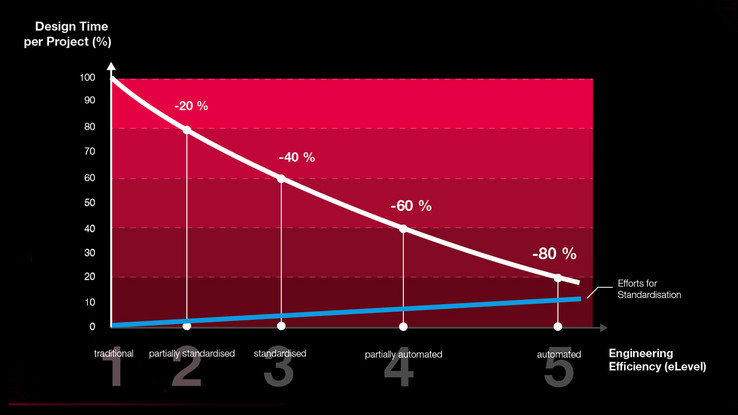

Engineering 4.0 Study Shows Possible Time Savings of Up to 80 Per Cent
Every machine building company has a unique sweet spot that represents the perfect ratio of manual efforts and standardisation efforts for electrical designs. The “Engineering 4.0” study, undertaken by EPLAN and the European 4.0 Transformation Center at RWTH Aachen University, clearly shows this. Its results lay out the path from manual to fully automated engineering, separated into five eLevels. What becomes clear is that the efforts required to achieve a higher degree of automation, even if it isn’t the highest one, almost always pays off in the long run.

White Paper: “The Competitive Advantage of Automation”
What is specifically needed to sustainably leverage the potential of digitalisation? Our white paper demonstrates how industrial companies can make major leaps in efficiency instead of just taking small, performance-enhancing steps. It additionally sheds light on what this means exactly for engineering.

No time for automated engineering? No more excuses!
No time, too few specialists, too much effort: when it comes to specifically implementing automation in everyday engineering, companies and employees have a few excuses ready. EPLAN eBUILD and a fascinating study supply you with good arguments to tackle the issue right now!

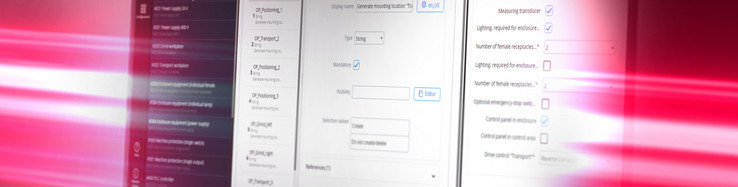

Használja az EPLAN szoftvereit kapcsolási rajzai automatizálására
Ha teljes mértékben kihasználja az alapszoftverében, például az EPLAN Electric P8-ban rejlő lehetőségeket, akkor már számos lehetőséggel rendelkezik az elektromos tervek szabványosítására és egyes részeinek automatizálására. Ezen túlmenően az EPLAN automatizált tervezési megoldása lehetővé teszi konfigurátorok létrehozását. Ez még a nem szakképzett dolgozók számára is lehetővé teszi, hogy néhány kattintással tervrajzkészleteket vagy akár teljes EPLAN-projekteket generáljanak. Szívesen segítünk Önnek ebben!
